Oncoprint / waterfall plot of variants across samples

Source: R/plot_oncoprint.R
plot_oncoprint.Rd

Draws a gene-by-sample mutation matrix ("oncoprint" in the ComplexHeatmap/cBioPortal vocabulary, "waterfall plot" in the GenVisR/maftools vocabulary — the same visualisation under two names). plot_waterfall() is an alias for plot_oncoprint(); both produce identical output.

Usage

plot_oncoprint(
  variants,
  top_n = NULL,
  genes = NULL,
  samples = NULL,
  annotation = NULL,
  palette = NULL,
  interactive = FALSE
)

plot_waterfall(
  variants,
  top_n = NULL,
  genes = NULL,
  samples = NULL,
  annotation = NULL,
  palette = NULL,
  interactive = FALSE
)

Arguments

variants

A gvf object from read_vcf() or coerce_variants(), or any data.frame with gene, sample, and consequence columns.

top_n

Integer. Show the top_n most frequently altered genes. Mutually exclusive with genes; if both are NULL, defaults to 10.

genes

Character vector of specific genes to show, in place of top_n. Mutually exclusive with top_n. Genes not present in variants are shown as fully unaltered rows.

samples

Character vector of sample names to include as columns. NULL (default) uses every sample present in variants.

annotation

Optional data.frame of sample-level metadata drawn as annotation tracks below the mutation matrix. Must contain a sample column matching sample identifiers in variants, plus one or more additional columns to display, one per track. NULL (default) omits annotation tracks.

palette

Named character vector of colours keyed by consequence. NULL uses the built-in gv_palette("consequence"). If it does not already contain "Multi_Hit" or "Other" entries, they are added automatically. Unlike plot_consequence_summary(), which shows the full breakdown of consequence types, plot_oncoprint() only distinguishes missense_variant, stop_gained, frameshift_variant, synonymous_variant, and Multi_Hit by colour (plus their common MAF/ SnpEff aliases, e.g. Missense_Mutation); every other consequence term is shown under "Other" rather than being dropped.

interactive

Logical. Returns a plotly object if TRUE.

Value

A ggplot object (or a plotly object when interactive = TRUE).

Details

Gene order. Genes are ranked by the number of distinct samples carrying at least one mutation in that gene (ties broken by total mutation count, then alphabetically), and the top_n most frequently altered genes are shown, most-altered at the top.

Sample order. Samples are ordered using the memo-sort ("cascade") algorithm: the displayed genes, already ranked most-to-least altered, are treated as bits of a binary number (the most-altered gene the most significant bit). Each sample's mutation pattern across the displayed genes is scored as that binary number, and samples are sorted by descending score (ties broken alphabetically by sample name). This greedily groups samples that share mutations in the top genes together, producing the characteristic left-to-right staircase pattern. Only the displayed genes contribute to the score; genes excluded by top_n/ genes have no effect on sample order.

Multi-hit cells. A gene mutated more than once in the same sample cannot be represented by a single consequence colour, so it is shown as a distinct "Multi_Hit" category instead of either consequence.

References

Gao J, Aksoy BA, Dogrusoz U, et al. (2013). Integrative analysis of complex cancer genomics and clinical profiles using the cBioPortal. Science Signaling, 6(269), pl1. doi:10.1126/scisignal.2004088

Skidmore ZL, Wagner AH, Lesurf R, et al. (2016). GenVisR: Genomic Visualizations in R. Bioinformatics, 32(19), 3012-3014. doi:10.1093/bioinformatics/btw325

Gu Z, Eils R, Schlesner M (2016). Complex heatmaps reveal patterns and correlations in multidimensional genomic data. Bioinformatics, 32(18), 2847-2849. doi:10.1093/bioinformatics/btw313

Mayakonda A, Lin DC, Assenov Y, Plass C, Koeffler HP (2018). Maftools: efficient and comprehensive analysis of somatic variants in cancer. Genome Research, 28(11), 1747-1756. doi:10.1101/gr.239244.118

See also

plot_tmb(), plot_consequence_summary(), gv_palette()

Other ggvariant plots: plot_consequence_summary(), plot_lollipop(), plot_tmb(), plot_variant_spectrum()

Examples

vcf_file <- system.file("extdata", "example.vcf", package = "ggvariant")
variants <- read_vcf(vcf_file)
#> ℹ Reading VCF: example.vcf
#> ✔ Reading VCF: example.vcf [10ms]
#>
#> Loaded 19 variant records across 7 chromosomes.

# Top 5 most-altered genes

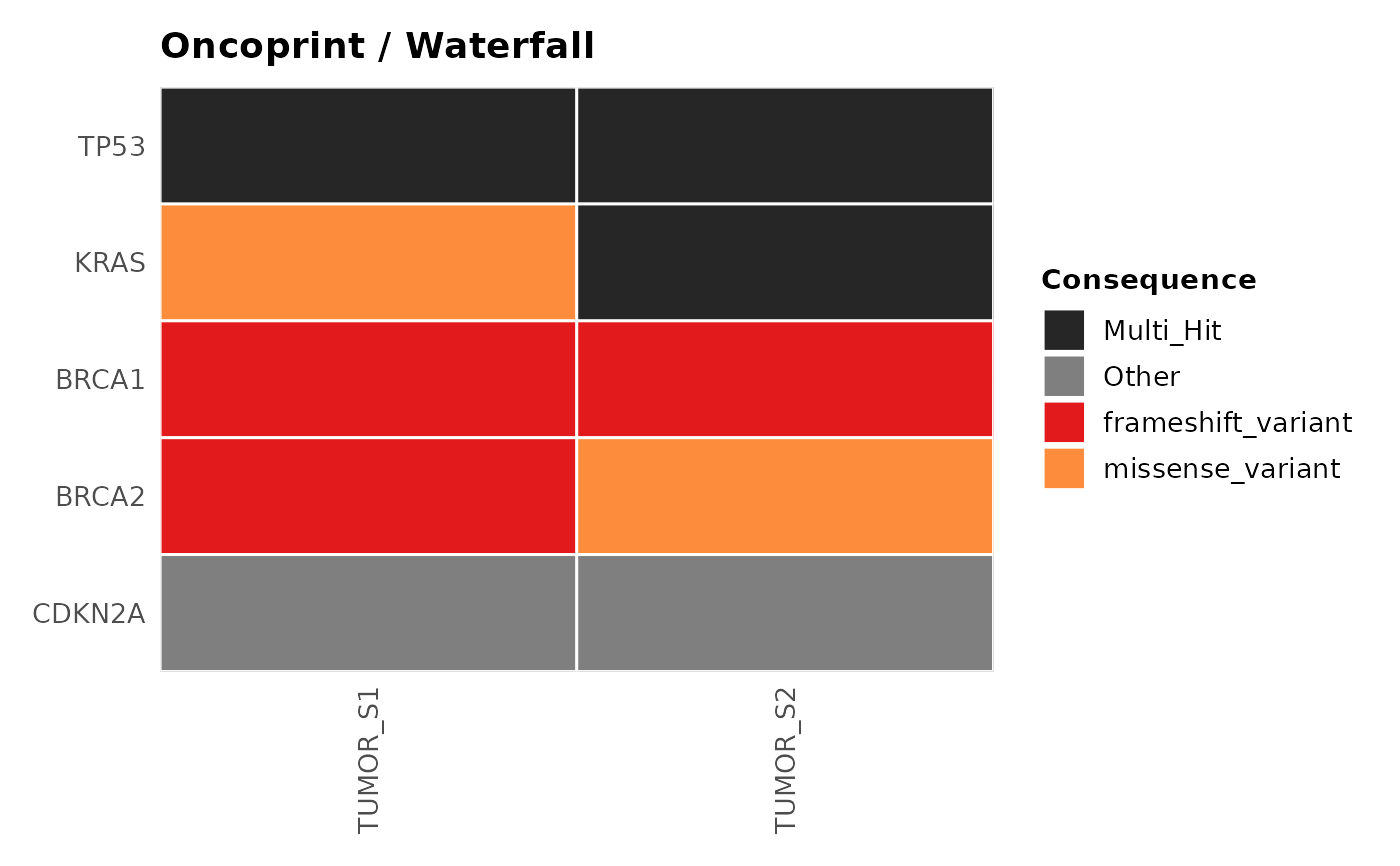

plot_oncoprint(variants, top_n = 5)


# A specific gene panel instead of top_n

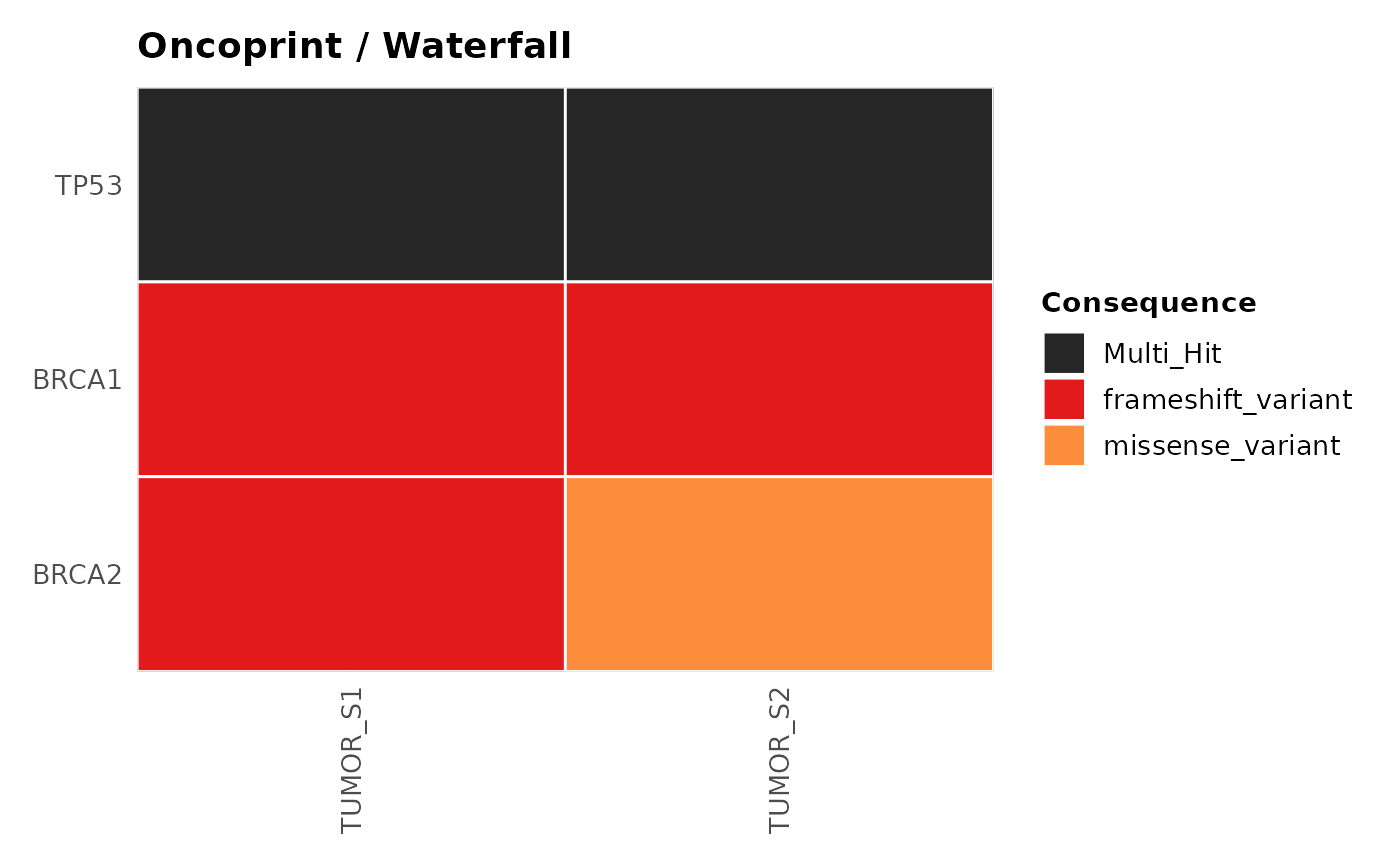

plot_oncoprint(variants, genes = c("TP53", "BRCA1", "BRCA2"))


# With a clinical annotation track
clinical <- data.frame(
  sample = c("TUMOR_S1", "TUMOR_S2"),
  stage  = c("III", "IV")
)

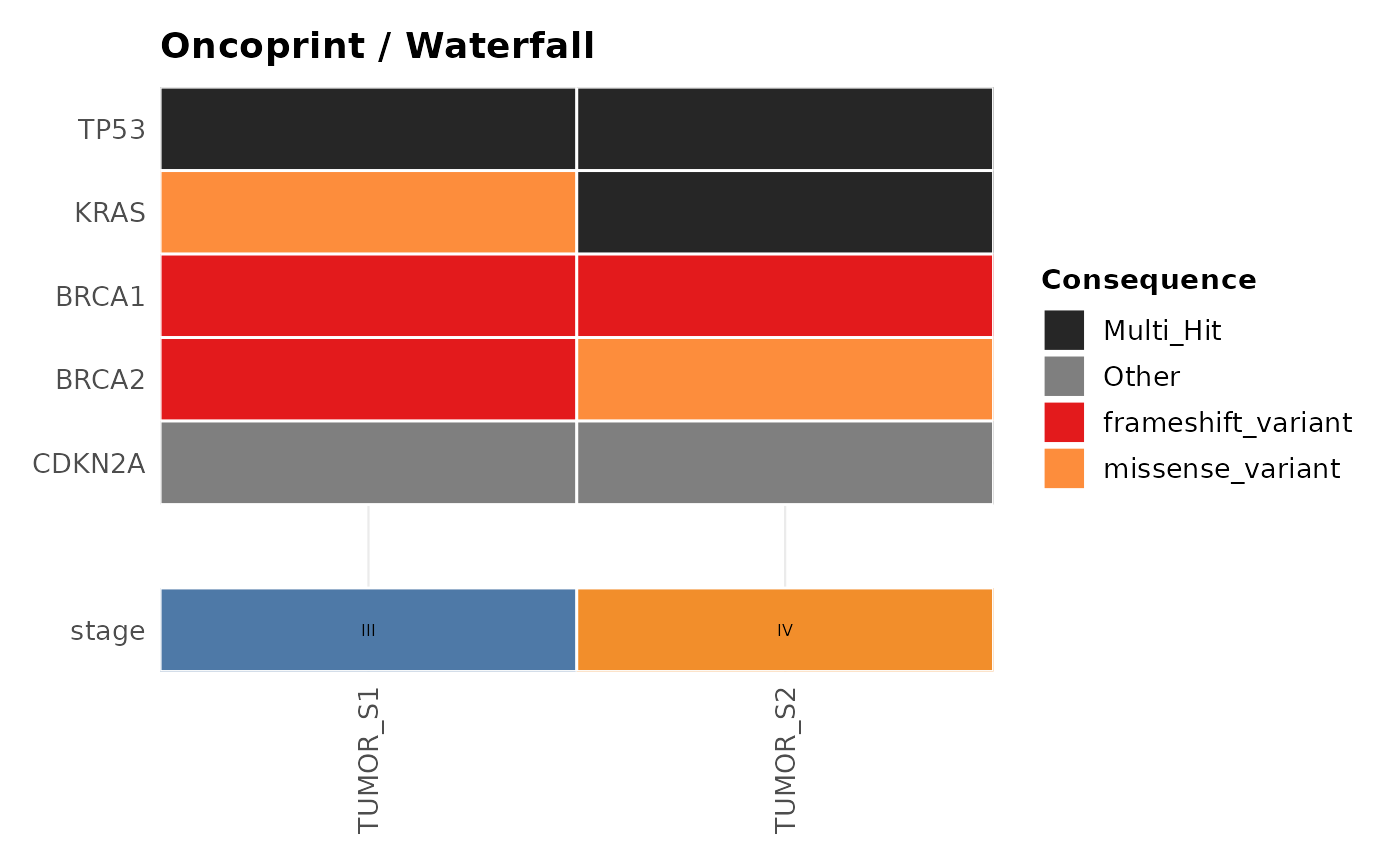

plot_oncoprint(variants, top_n = 5, annotation = clinical)
